Overview

This page bundles the available data for the Prisayan-Yenisey Syneclise in the Siberian region. The images are hyperlinks and will open up a separate window with a high resolution PDF image of the map.
The basin data is derived from a lower resolution grid which has been upsampled using GMT. This could have introduced an accuracy which is beyond the original data resolution.

Select data to display:

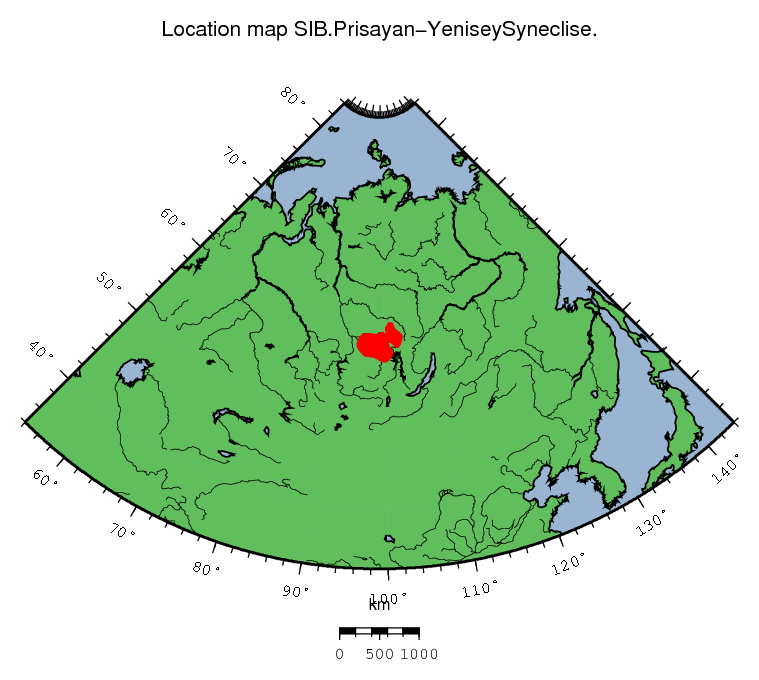

Prisayan-Yenisey Syneclise location map
Basin name Prisayan-Yenisey Syneclise
Region code SIB
Basin ID 4220
Plate location/code /
Basin cross section

The basin cross section is automatically generated using the available crustal structure data sets. Sometimes the data labels are not plotted correctly, depending on the length of the section.

The location of the profile is indicated in all maps as dashed-dotted thin black line. For the endpoints of the profile, the two points of a given polygon located farthest away from each other were computed.

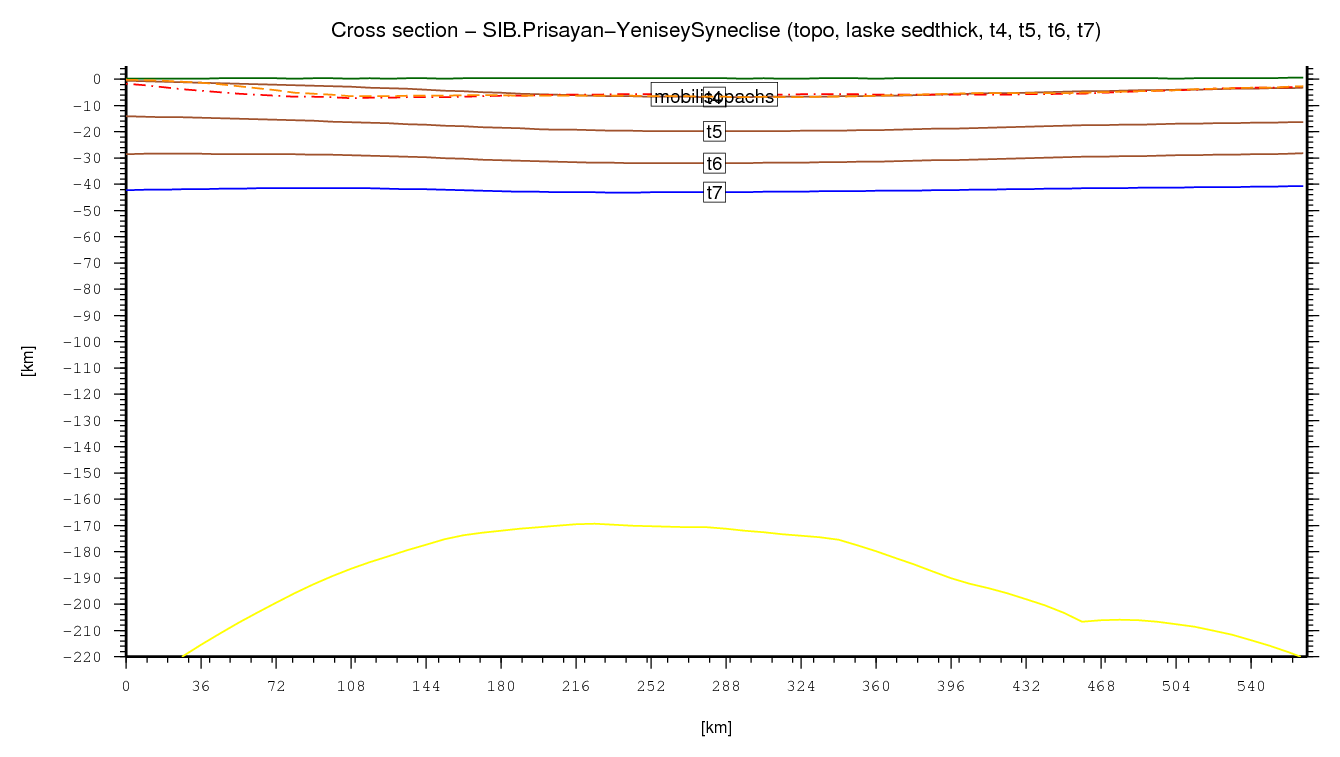

Prisayan-Yenisey Syneclise cross section
↑ back to the top
Dynamic topography evolution for basin centroid

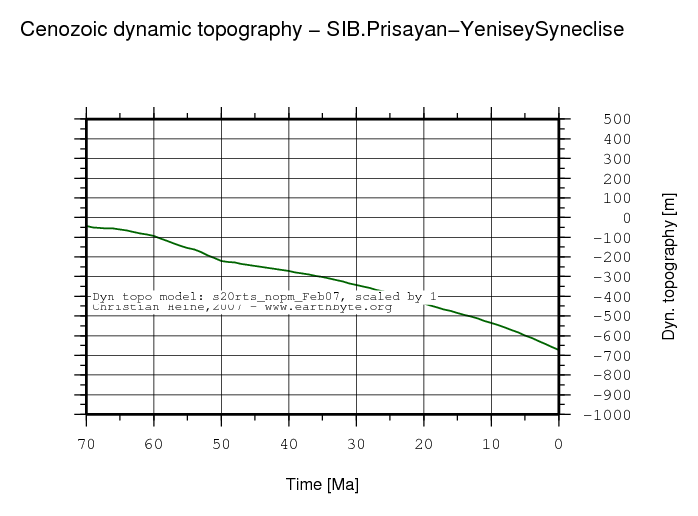

Prisayan-Yenisey Syneclise dynamic topography through time

The dynamic topography history for the basin is derived by tracking the basin centroid. The paleo-location for this point is computed using the EarthByte plate kinematic framework rotating the position back in time.

The dynamic topography model is derived from the S20RTS seismic tomography model (Ritsema et al., 99) by converting seismic velocites to density anomalies using an empirical scaling factor of 0.25. The density anomalies are then advected back in time to compute mantle flow with plate motions superimposed (using the EarthByte plate rotation framework) as surface boundary conditions. The dynamic topography is then derived from the computed density distribution using a free upper boundary. For details regarding the methodology see the following papers:

  • B. Steinberger, H. Schmeling, and G. Marquart. Large-scale lithospheric stress field and topography induced by global mantle circulation. Earth Planet. Sci. Lett., 186:75-91, 2001.
    doi: 10.1016/S0012-821X(01)00229-1.
  • B. Steinberger. Effects of latent heat release at phase boundaries on flow in the Earth's mantle, phase boundary topography and dynamic topography at the Earth's surface. Phys. Earth Planet. Int., 164:2-20, 2007.
    doi: 10.1016/j.pepi.2007.04.021.

↑ back to the top

Observations

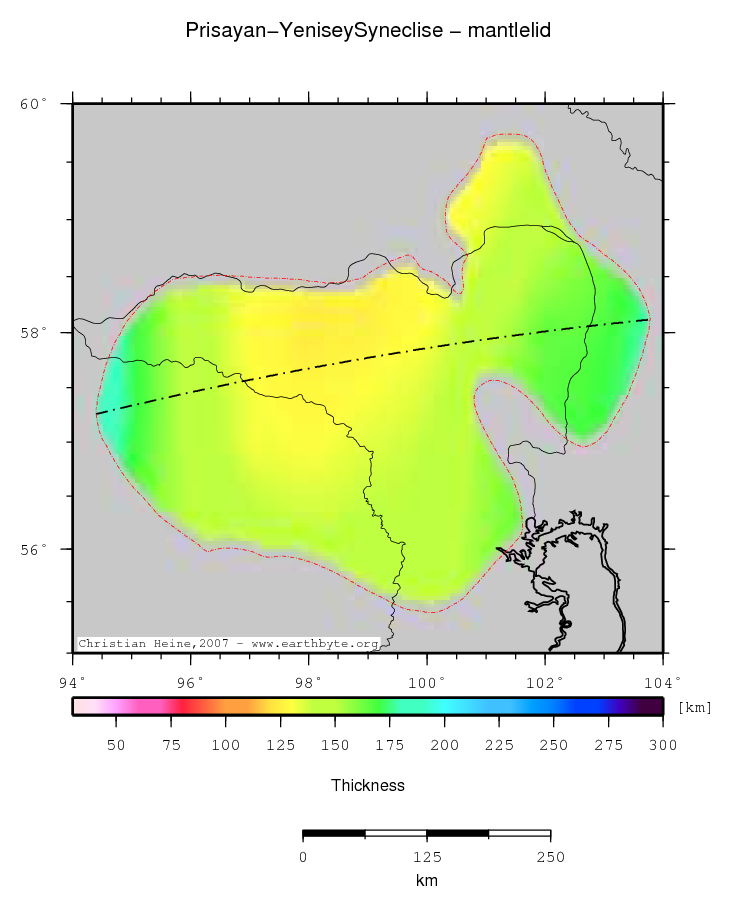

Mantle Lid thickness
Prisayan-Yenisey Syneclise location map
Statistics - Mantle Lid thickness
Median 142.514
Mean 145.062
Scale 14.808
stdev 14.121
Z_min/Location 123.000/58.0°Lat 98.0°Lon
Z_max/Location 191.219/ 57.4°Lat 94.4333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

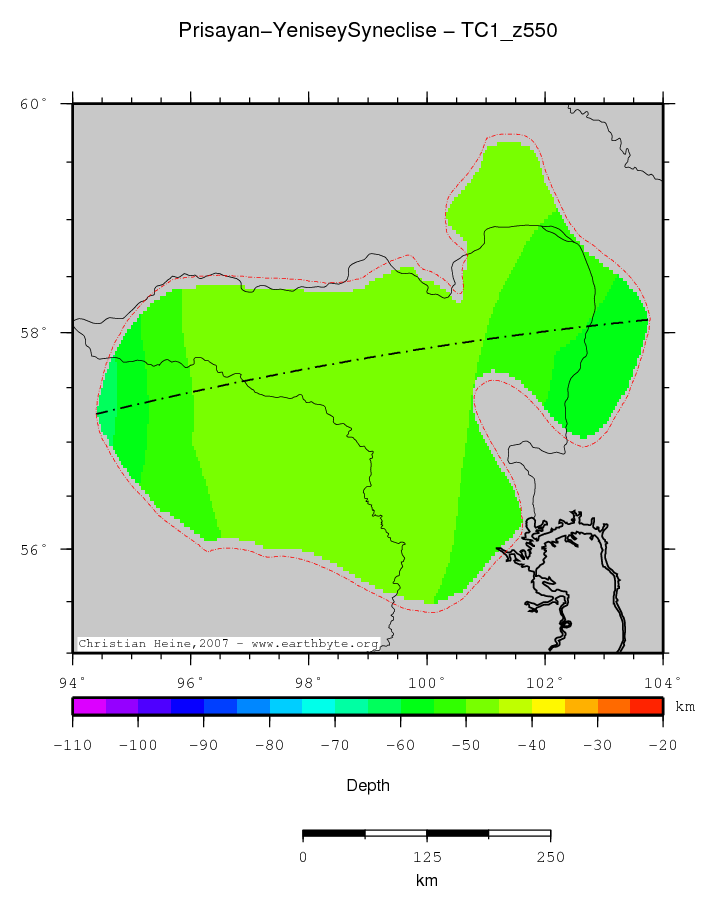

Depth of 550 deg isotherm
Prisayan-Yenisey Syneclise location map
Statistics - Depth of 550 deg isotherm
Median -49.064
Mean -50.005
Scale 2.702
stdev 3.321
Z_min/Location -63.699/57.4°Lat 94.4333°Lon
Z_max/Location -46.000/ 58.0°Lat 97.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

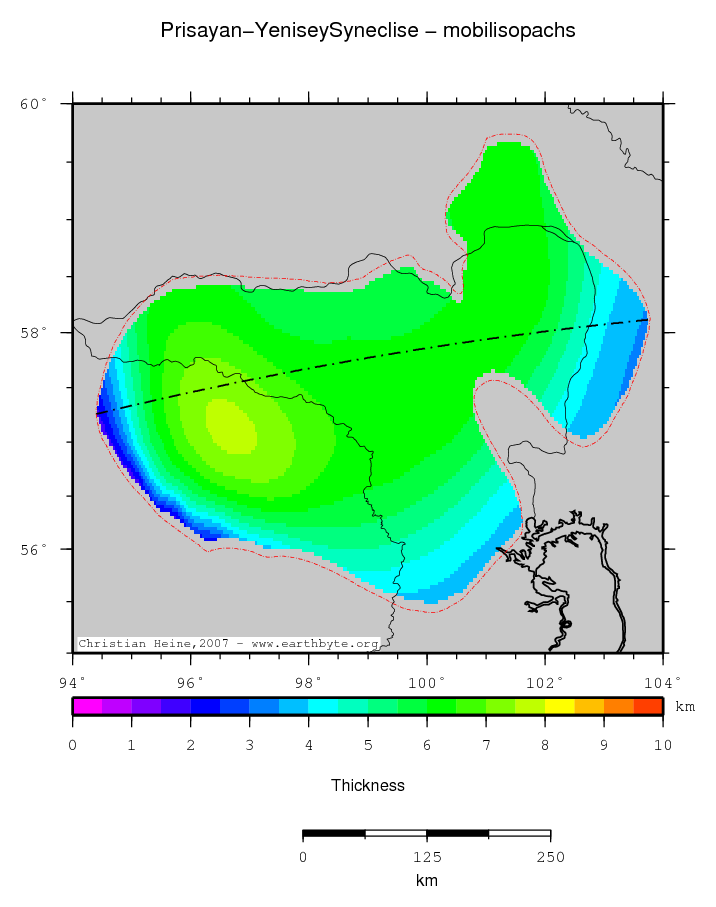

Mobil isopachs
Prisayan-Yenisey Syneclise location map
Statistics - Mobil isopachs
Median 5.988
Mean 5.623
Scale 0.661
stdev 1.114
Z_min/Location 1.261/56.2°Lat 95.7333°Lon
Z_max/Location 7.642/ 57.1333°Lat 96.6333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

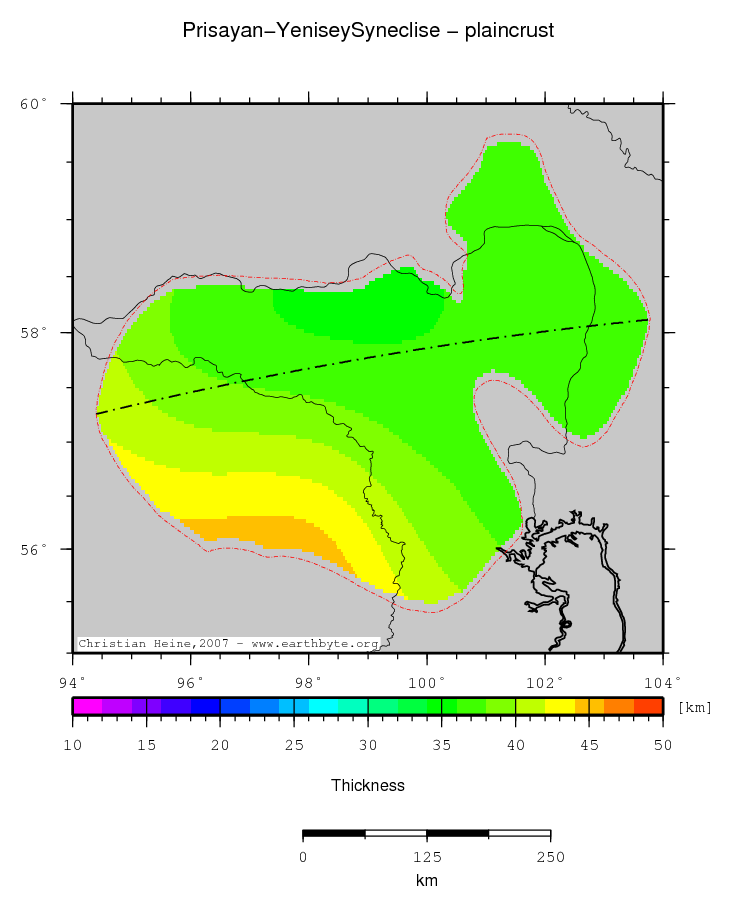

Plain crustal thickness
Prisayan-Yenisey Syneclise location map
Statistics - Plain crustal thickness
Median 37.513
Mean 38.586
Scale 1.870
stdev 2.517
Z_min/Location 35.497/58.4333°Lat 98.5°Lon
Z_max/Location 45.606/ 55.9333°Lat 97.3333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

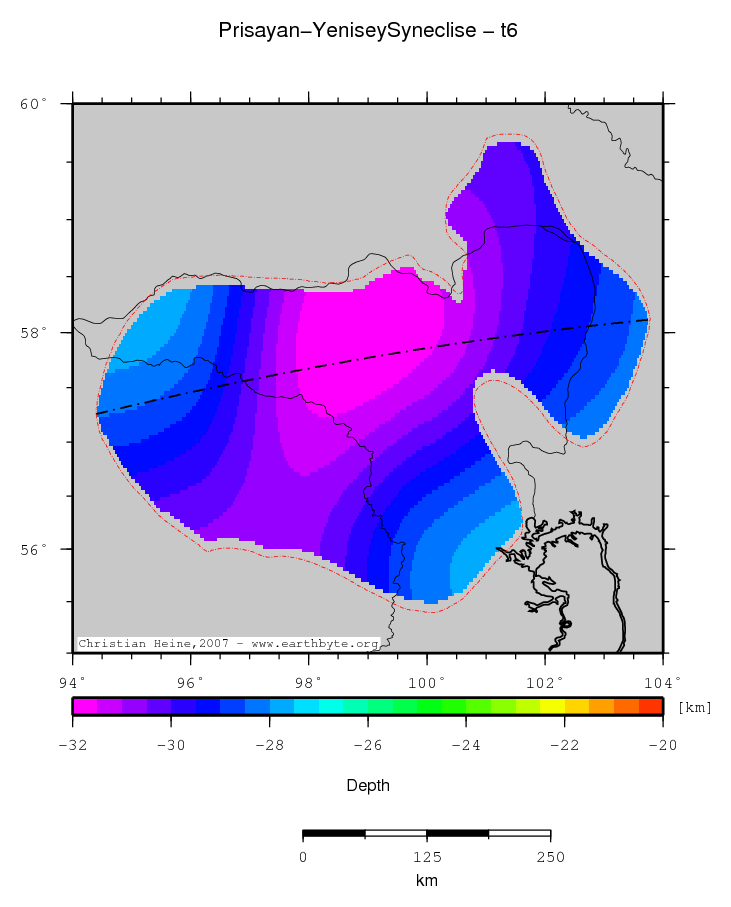

Base middle crust
Prisayan-Yenisey Syneclise location map
Statistics - Base middle crust
Median -30.008
Mean -29.913
Scale 1.391
stdev 1.189
Z_min/Location -32.052/58.0°Lat 98.8333°Lon
Z_max/Location -27.654/ 56.0333°Lat 101.433°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

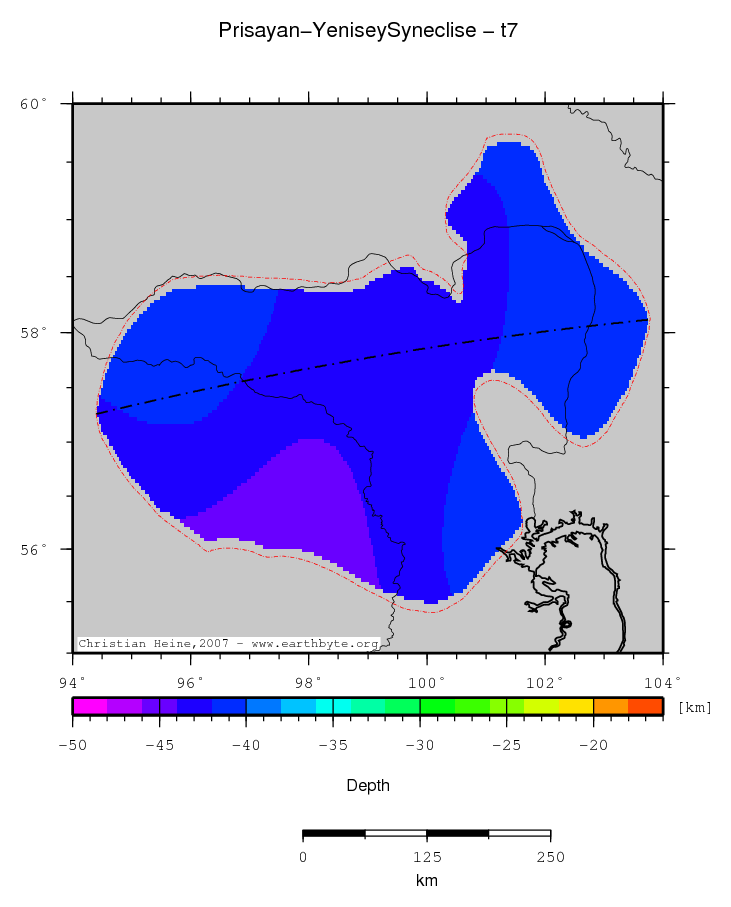

Base lower crust
Prisayan-Yenisey Syneclise location map
Statistics - Base lower crust
Median -42.282
Mean -42.452
Scale 1.092
stdev 1.150
Z_min/Location -45.833/55.9°Lat 97.9°Lon
Z_max/Location -40.610/ 58.3°Lat 95.9°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

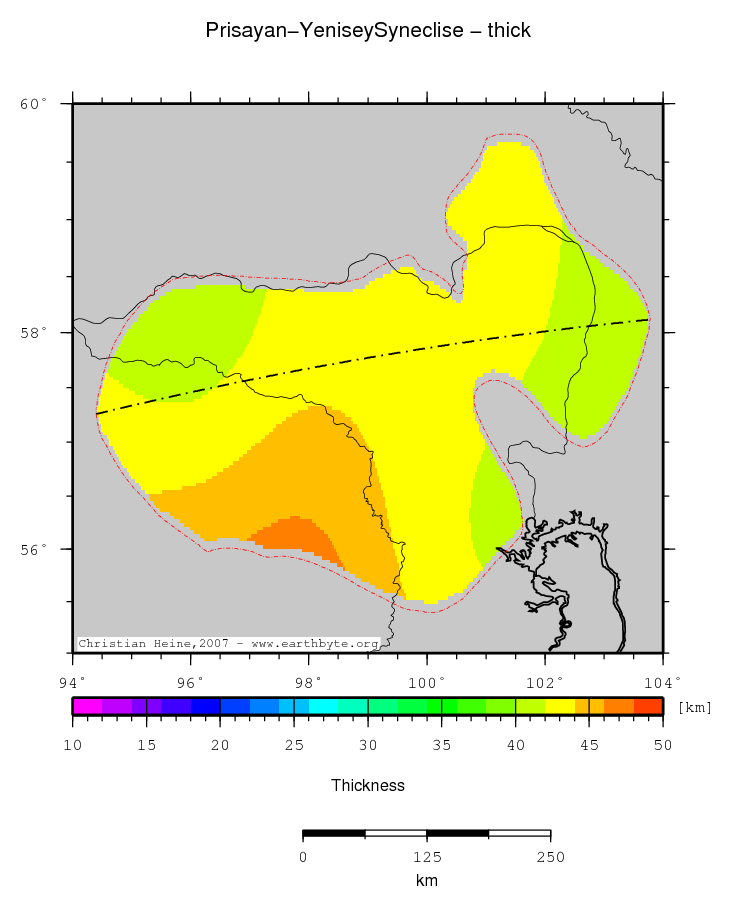

Total crustal thickness
Prisayan-Yenisey Syneclise location map
Statistics - Total crustal thickness
Median 42.703
Mean 42.914
Scale 1.135
stdev 1.266
Z_min/Location 40.861/58.3°Lat 95.9°Lon
Z_max/Location 46.740/ 55.9°Lat 97.9°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

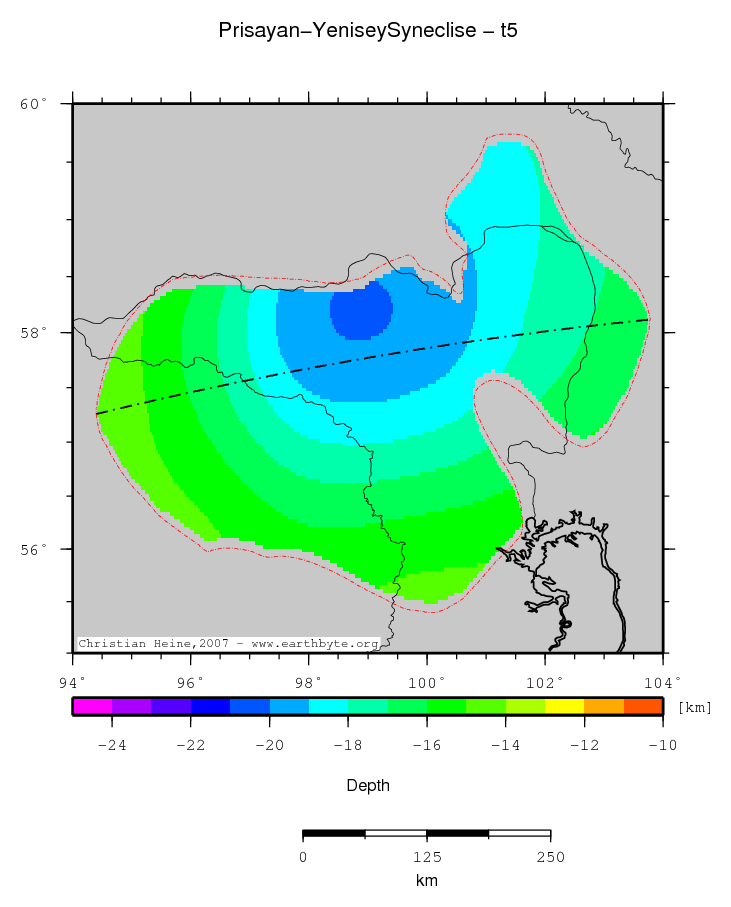

Base upper crust
Prisayan-Yenisey Syneclise location map
Statistics - Base upper crust
Median -17.067
Mean -17.150
Scale 1.949
stdev 1.585
Z_min/Location -20.112/58.2°Lat 98.8333°Lon
Z_max/Location -14.123/ 57.4°Lat 94.4333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

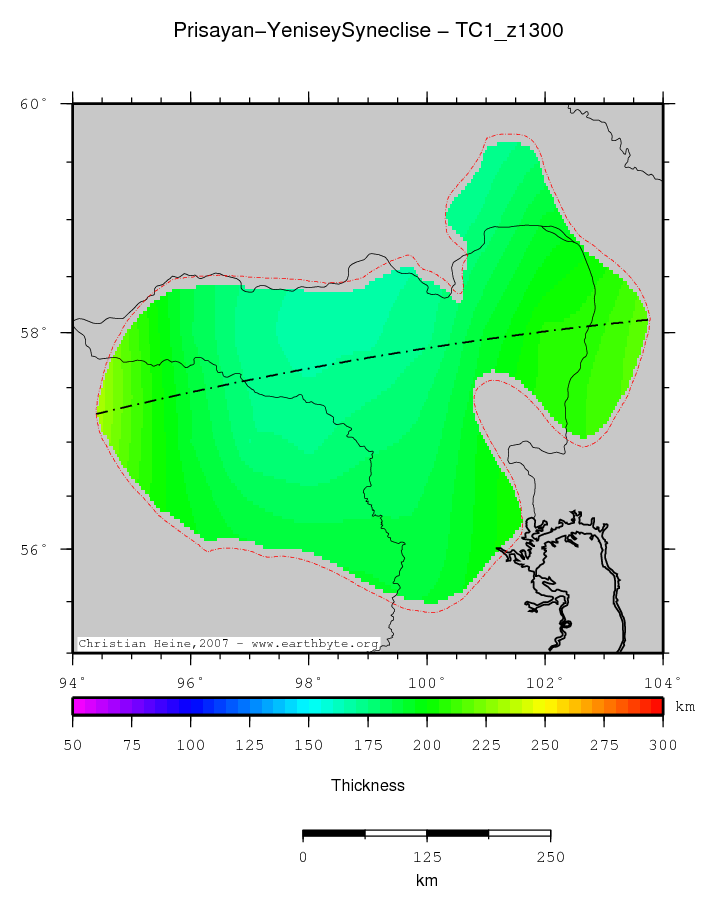

Thermal lithospheric thickness
Prisayan-Yenisey Syneclise location map
Statistics - Thermal lithospheric thickness
Median 186.199
Mean 187.975
Scale 14.476
stdev 13.621
Z_min/Location 166.000/58.0°Lat 98.0°Lon
Z_max/Location 233.612/ 57.4°Lat 94.4333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

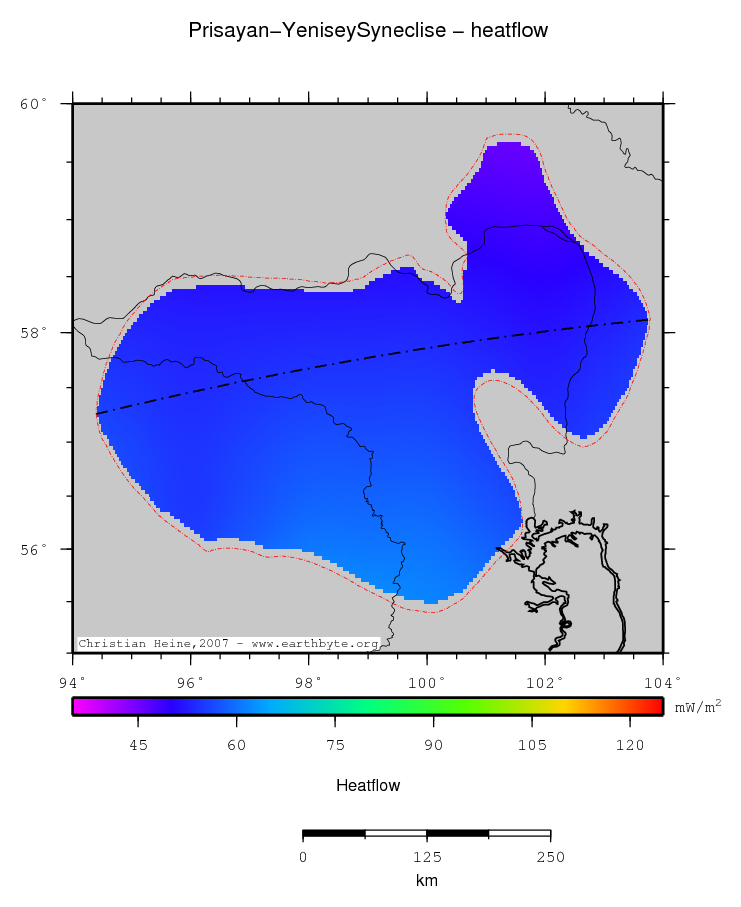

Heatflow
Prisayan-Yenisey Syneclise location map
Statistics - Heatflow
Median 54.528
Mean 54.589
Scale 3.055
stdev 3.341
Z_min/Location 45.400/59.7333°Lat 101.567°Lon
Z_max/Location 62.404/ 55.5°Lat 99.3667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

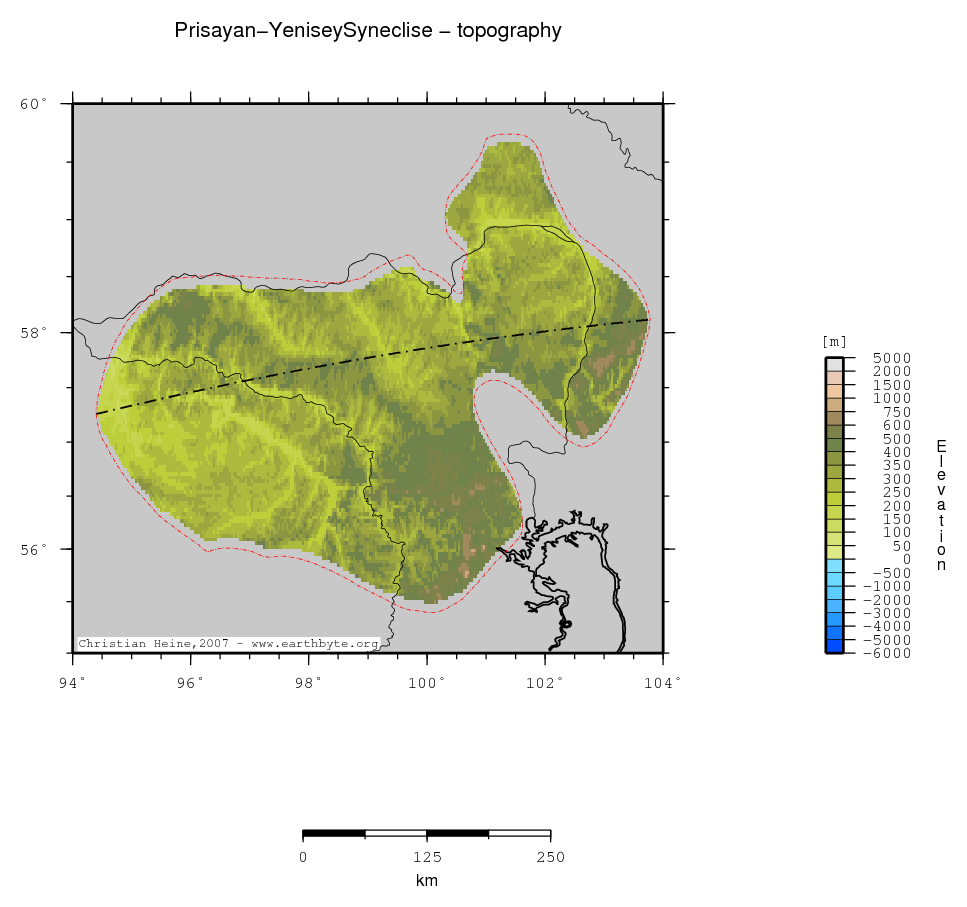

Topography (ETOPO2)
Prisayan-Yenisey Syneclise location map
Statistics - Topography (ETOPO2)
Median 332.000
Mean 341.438
Scale 84.508
stdev 93.467
Z_min/Location 111.000/57.7°Lat 94.6667°Lon
Z_max/Location 836.000/ 56.0°Lat 100.967°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

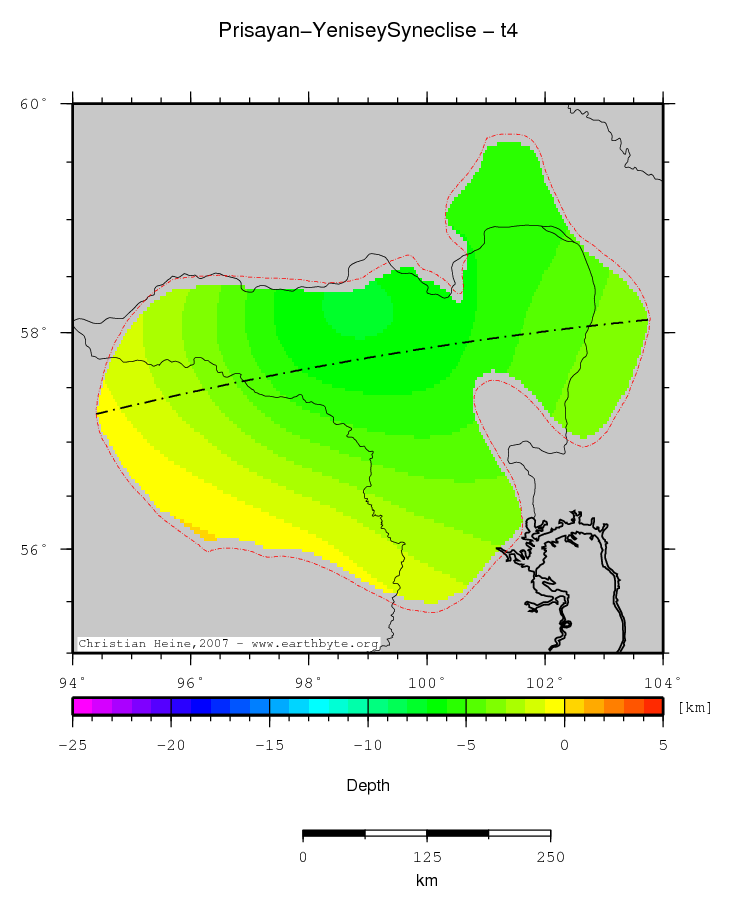

Base hard sediments
Prisayan-Yenisey Syneclise location map
Statistics - Base hard sediments
Median -3.964
Mean -3.866
Scale 2.412
stdev 1.937
Z_min/Location -7.149/58.2333°Lat 98.7667°Lon
Z_max/Location 0.257/ 56.0°Lat 96.2333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

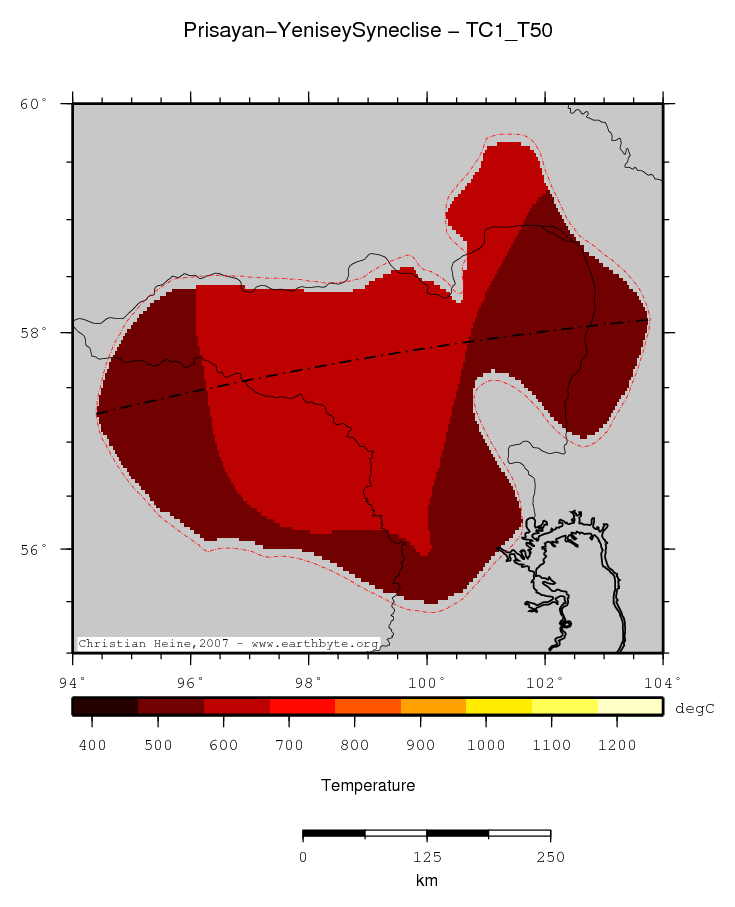

Temperature at 50km depth
Prisayan-Yenisey Syneclise location map
Statistics - Temperature at 50km depth
Median 569.154
Mean 566.476
Scale 28.174
stdev 25.263
Z_min/Location 494.285/57.4°Lat 94.4333°Lon
Z_max/Location 608.000/ 58.0°Lat 98.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

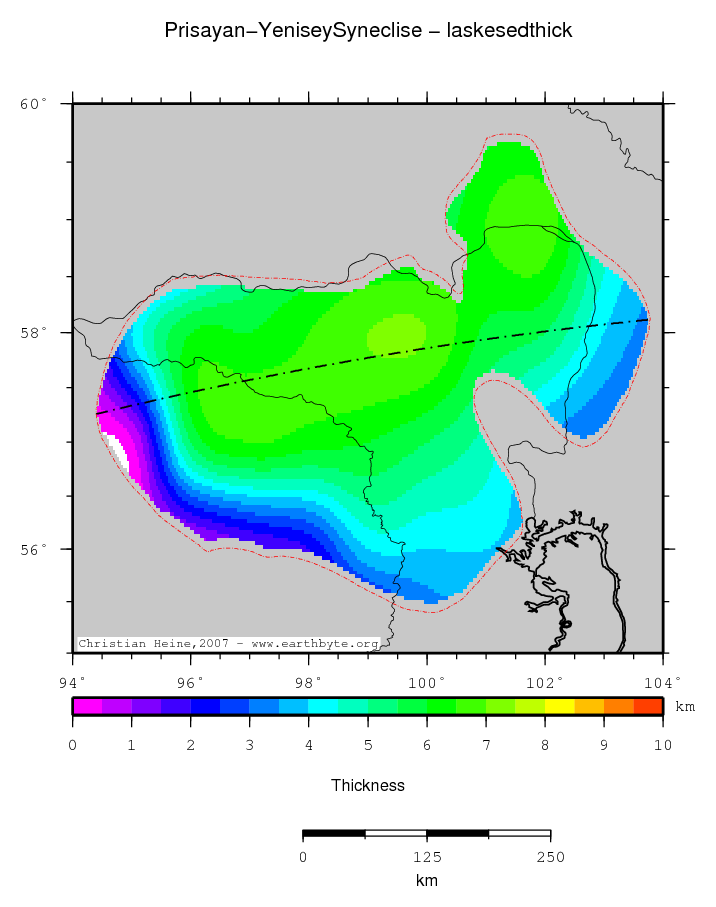

Laske sediment thickness
Prisayan-Yenisey Syneclise location map
Statistics - Laske sediment thickness
Median 5.460
Mean 5.047
Scale 1.603
stdev 1.589
Z_min/Location -0.191/56.8333°Lat 94.7333°Lon
Z_max/Location 7.105/ 57.9667°Lat 99.5667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

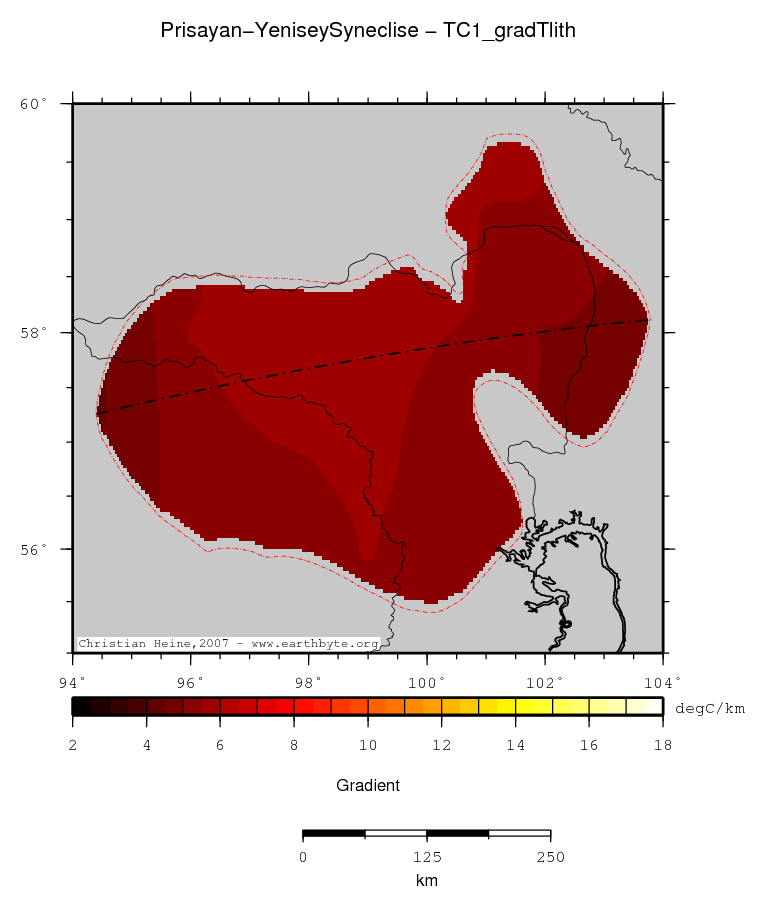

Lithospheric temperature gradient
Prisayan-Yenisey Syneclise location map
Statistics - Lithospheric temperature gradient
Median 5.384
Mean 5.338
Scale 0.308
stdev 0.305
Z_min/Location 4.450/57.4°Lat 94.4333°Lon
Z_max/Location 5.981/ 57.0°Lat 99.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

Computations

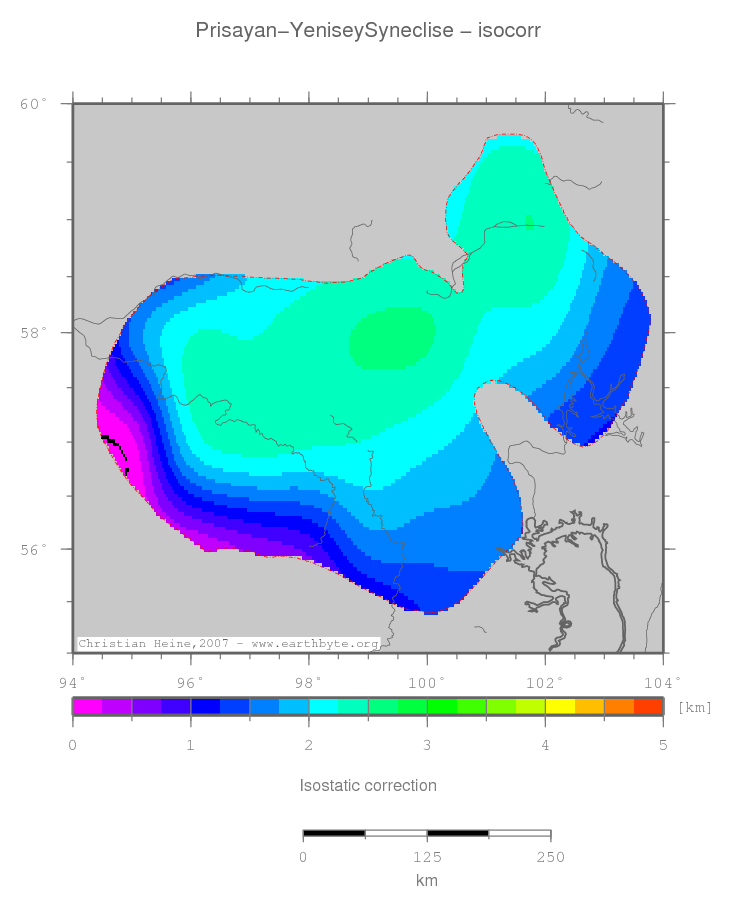

Isostatic correction
Prisayan-Yenisey Syneclise location map
Statistics - Isostatic correction
Median 2.061
Mean 1.900
Scale 0.505
stdev 0.549
Z_min/Location 0.000/57.0667°Lat 94.5°Lon
Z_max/Location 2.560/57.9667°Lat 99.5667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

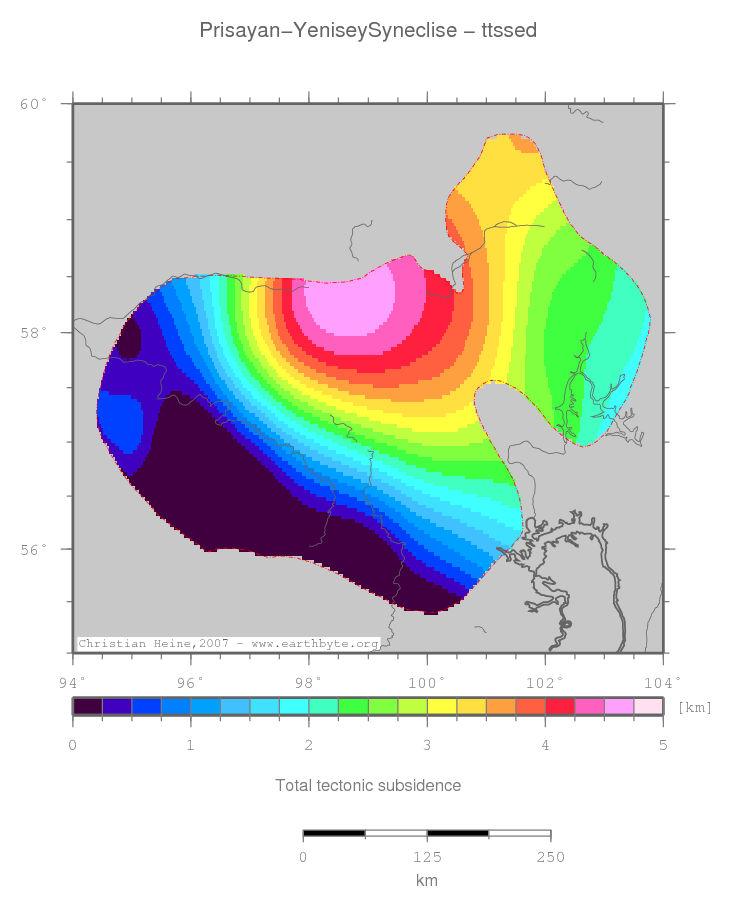

TTS (sediment)
Prisayan-Yenisey Syneclise location map
Statistics - TTS (sediment)
Median 2.177
Mean 1.966
Scale 1.925
stdev 1.521
Z_min/Location -0.704/56.5667°Lat 96.1°Lon
Z_max/Location 4.748/58.4°Lat 98.5667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

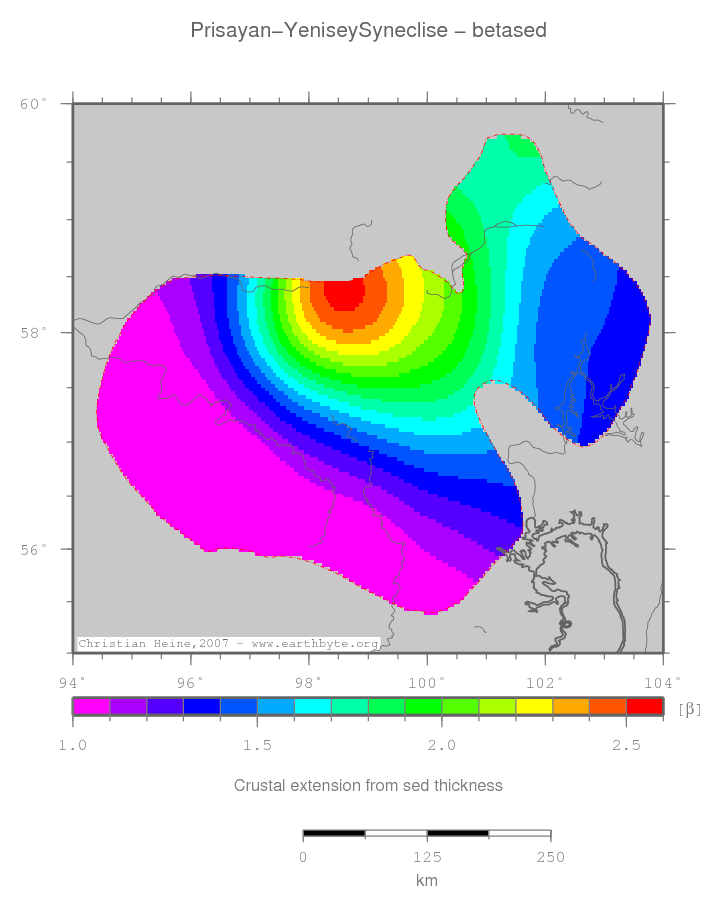

Beta (Sediment)
Prisayan-Yenisey Syneclise location map
Statistics - Beta (Sediment)
Median 1.386
Mean 1.437
Scale 0.473
stdev 0.405
Z_min/Location 0.917/56.5667°Lat 96.1°Lon
Z_max/Location 2.546/58.4°Lat 98.5667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

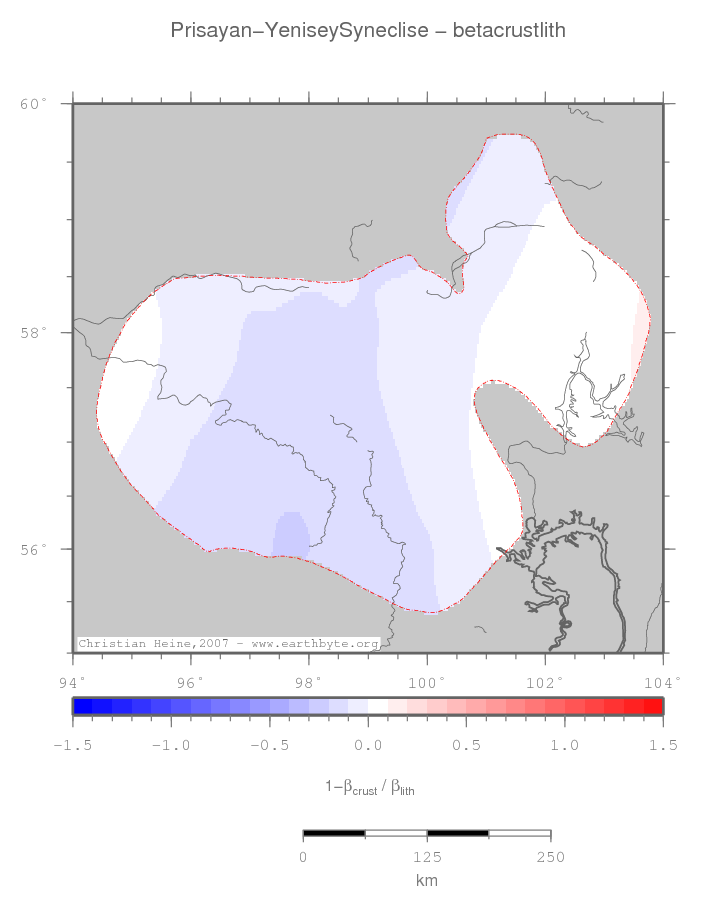

Crustal vs lithosph. extn.
Prisayan-Yenisey Syneclise location map
Statistics - Crustal vs lithosph. extn.
Median -0.079
Mean -0.064
Scale 0.087
stdev 0.081
Z_min/Location -0.203/56.0667°Lat 97.7°Lon
Z_max/Location 0.117/58.0667°Lat 103.767°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

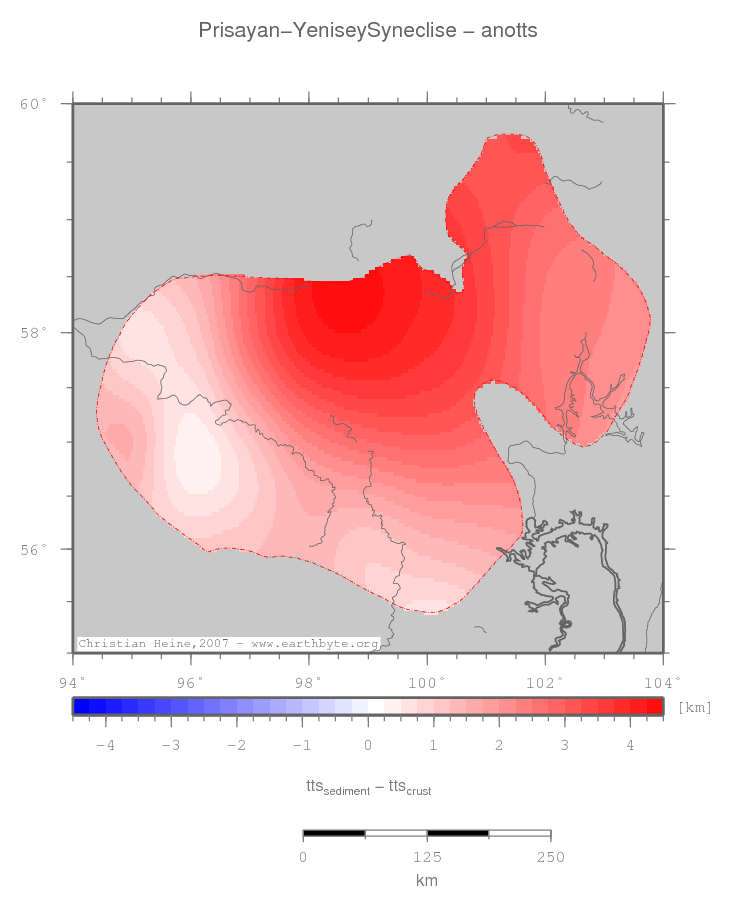

Anomalous TTS
Prisayan-Yenisey Syneclise location map
Statistics - Anomalous TTS
Median 2.258
Mean 2.251
Scale 1.359
stdev 1.076
Z_min/Location 0.290/56.8667°Lat 96.0667°Lon
Z_max/Location 4.385/58.3667°Lat 98.6°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

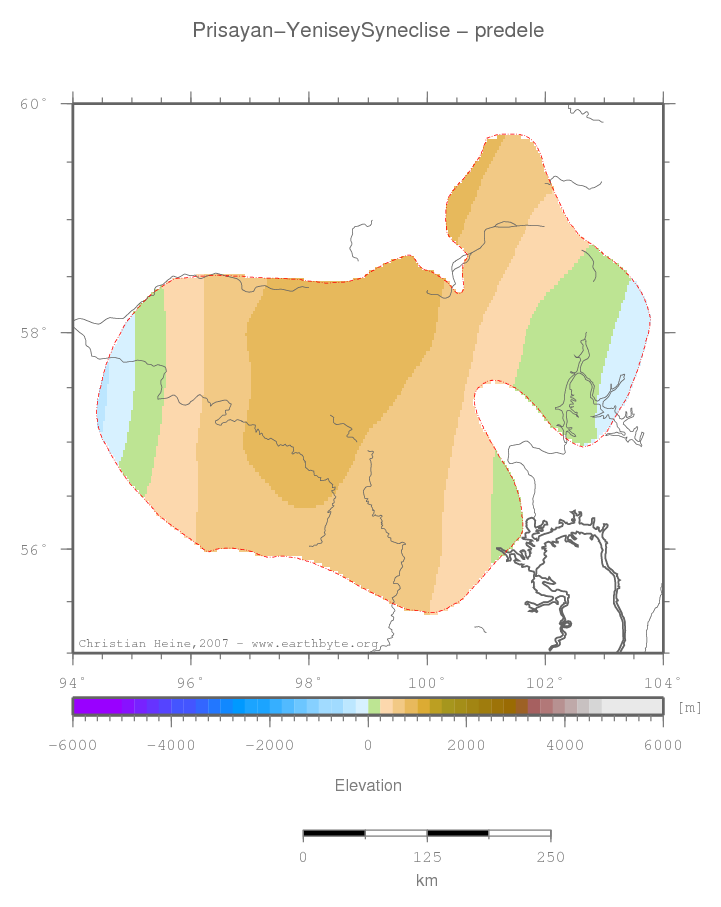

Predicted elevation
Prisayan-Yenisey Syneclise location map
Statistics - Predicted elevation
Median 585.535
Mean 515.202
Scale 281.251
stdev 278.506
Z_min/Location -341.431/57.4°Lat 94.4333°Lon
Z_max/Location 907.425/58.0°Lat 98.0°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

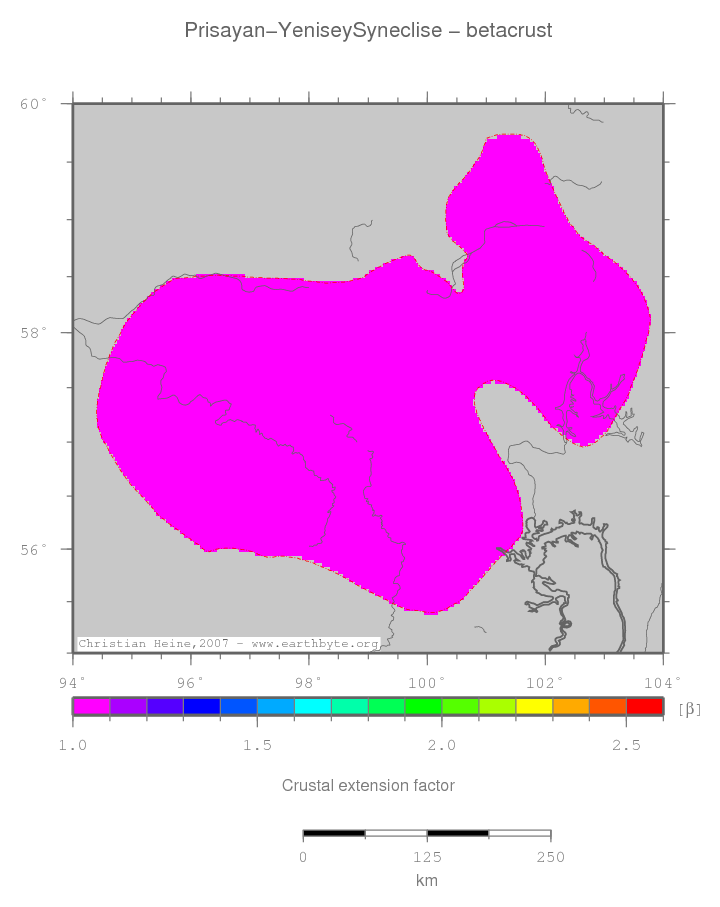

Beta (Crust)
Prisayan-Yenisey Syneclise location map
Statistics - Beta (Crust)
Median 0.992
Mean 0.969
Scale 0.051
stdev 0.060
Z_min/Location 0.816/55.9333°Lat 97.3333°Lon
Z_max/Location 1.049/58.4333°Lat 98.5°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
TTS (crust)
Prisayan-Yenisey Syneclise location map
Statistics - TTS (crust)
Median -0.059
Mean -0.285
Scale 0.393
stdev 0.529
Z_min/Location -1.759/55.9333°Lat 97.3333°Lon
Z_max/Location 0.364/58.4333°Lat 98.5°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

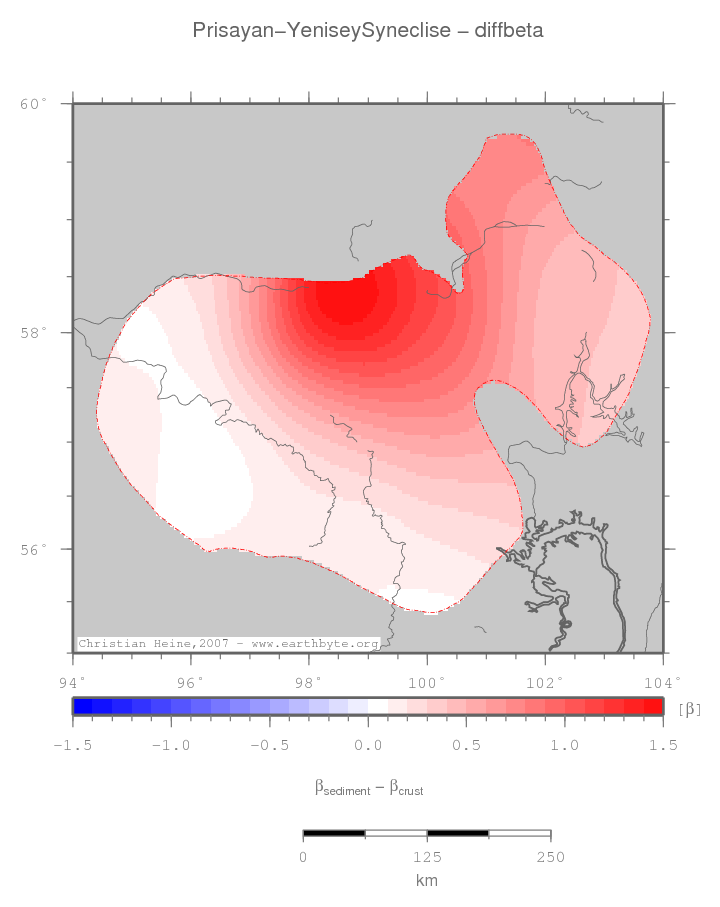

Differential Beta
